| 产品特性：保护功能 | 品牌：PCT/普诚 | 型号：PT2502 |
| 类型：其他IC | 用途：电源IC | 封装：SSOP28 |
| 系列：电机驱动器IC | 功率：参考规格书 | 批号：2024+ |
| 特色服务：提供技术支持 | 产品说明：原厂原装 | 应用领域：照明电子 |
| 数量：110000 | QQ：1186670662 | 资质：代理 |
| 货源：原厂 | 可售卖地：全国 |
深圳市科瑞芯电子是PCT/普诚的供应商，商品原厂原装
供应三相无刷直流马达控制芯片，可为终端客户提供样品及技术支持！
深圳市内可送货上门，网上价格仅供参考，具体价格请咨询客服~
型号：PT2502
封装：SSOP28
品牌：PCT/普诚
温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！
DESCRIPTION
PT2502 is an integrated 12V 3-phase sensor-less (noHall sensor required) BLDC motor controller. Threephase motor control with square/trapezoidal wave isbased on detecting a zero-crossing signal generatedfrom the motor back-EMF (BEMF) and providesrobust control stability that is not easily affected bydifferent motors. Soft-switching control technologyoutputs trapezoidal/quasi-sinusoidal-wave currentand further reduces audible electro-current noise.PT2502 provides an internal +5V voltage regulator tosupply power to the analog and digital blocks. For400V high-voltage motor control applications, anexternal high voltage gate driver and six N-channelMOSFETs are required. For 12V to 24V operation,PT2502 can drive high-side P-channel MOSFET andlow-side N-channel MOSFET with a simple levelshifter circuit. Optimized parameter settings fordifferent motors and applications may be written toOTP memory. The PT2502 is provided in an SSOP28package.
FEATURES
● 3-phase sensor-less BL .DC control
● Intemal +5V regulator and 5V - 24V power application
● Internal OTP write support for motor parameters
● I2C interface for parameter seting
● Over-current protection and over-voltage protection
● Thermal protection function with an extemal NTC resistor
● Lock protect function
● PWM or DC control input support for motor speed control
● FG output function
APPLICATIONS
● 3-phase sensor-less BLDC motor controller
● High speed fan
● Water pump

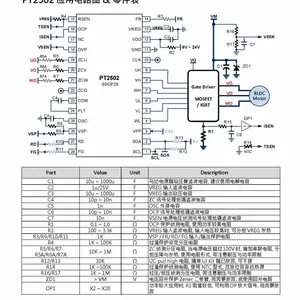

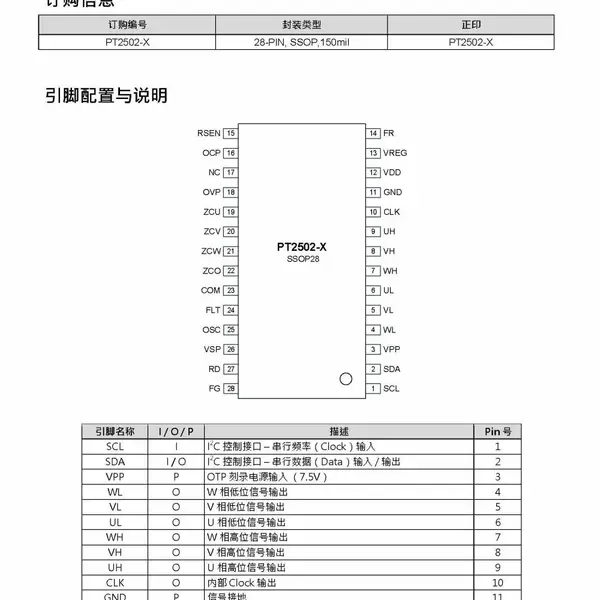

产品规格书（部分），如需PDF文档请QQ索要或电话联系
