型号：PT5606

封装：SOP8

品牌：PCT/普诚

温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！

DESCRIPTION

The PT5606 is a high speed high voltage (600V) driverto control power devices like MOS-transistors or IGBTsin half bridge systems with dependent high and lowside referenced output channels. The logic input iscompatible with standard CMOS or LSTTL output,down to 3.3V logic. The device includes anunder-voltage detection unit with hysteresischaracteristic and prevents power devices againstlarge amount of conduction loss, when voltage marginof gate is not high enough. The output drivers feature ahigh pulse current buffer stage designed for minimumdriver cross-conduction. The floating channel can beused to drive an N-channel power MOSFET or IGBT,in the high side configuration which operates up to 600volts.

FEATURES

● Drives two IGBT/MOSFET power devices

● high side channel fully operate up to +600V

● Gate drive suplies from 10V to 20 V per channel

● Under-voltage lockout

● Advanced input filter

● Built-in dead-time protection: 0.5us

● 10+/-: 290/620mA, large sourcing current to bypass miller effect

● Shoot-through (cross-conduction) protection

● 3.3V/5V/15V input logic compatible

● Matched propagation delays for all channels

● Matched dead time

● High side output in phase with HIN input

● Low side output out of phase with LIN input

● Tolerant to negative transient voltage, immunity of dv/dt up to 50V/ns

● Low di/dt gate drive for better noised immunity

● -40℃ to 125℃ operating range

● SOP8L Package available

● Lead-free

APPLICATIONS

● Appliance motor drives- -air conditioners, washing machines, refrigerator, dish washer, Fans

● General purpose inverters

● Electric bike, Electric tools

● Lighting, switching power supply

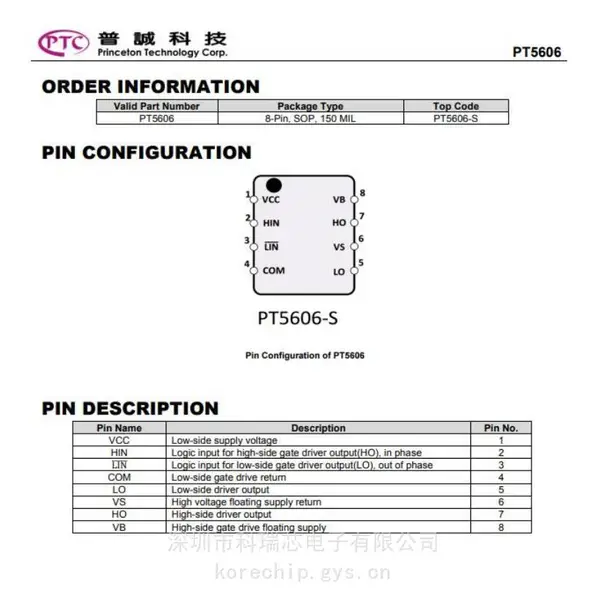

产品规格书（部分），如需PDF文档请QQ索要或电话联系
