| 产品特性：宽工作电压 | 品牌：PCT/普诚 | 型号：PT2471 |
| 类型：其他IC | 用途：电源IC | 封装：HSOP8 |
| 系列：电机驱动器IC | 功率：参考规格书 | 批号：2024+ |
| 特色服务：提供技术支持 | 产品说明：原厂原装 | 应用领域：照明电子 |
| 数量：70000 | QQ：1186670662 | 资质：代理 |
| 货源：原厂 | 可售卖地：全国 |
深圳市科瑞芯电子是PCT/普诚的供应商，商品原厂原装
供应36V/3.6A有刷直流电机驱动器，可为终端客户提供样品及技术支持！
深圳市内可送货上门，网上价格仅供参考，具体价格请咨询客服~
型号：PT2471
封装：HSOP8
品牌：PCT/普诚
温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！

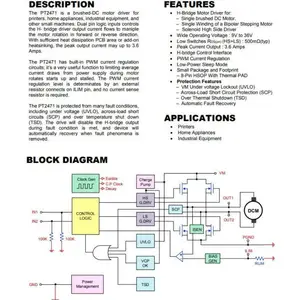

DESCRIPTION
The PT2471 is a brushed-DC motor driver for printers,home appliances, industrial equipment, and othersmall machines. Dual pin logic inputs controls the Hbridge driver output current flows to maniple the motorrotation in forward or reverse direction. With sufficientheat dissipation PCB area or add-on heatsinking, thepeak output current may up to 3.6 Amps.
The PT2471 has built-in PWM current regulationcircuits; it&＃39;s a very useful function to limiting averagecurrent draws from power supply during motor rotatesstarts up and stalled. The PWM current regulationlevel is determinates by an external applied VREFreference voltage and current sense resistanceattached in ISEN pin.
The PT2471 is protected from many fault conditions,including under voltage (UVLO), across-load shortcircuits (SCP) and over temperature shut down (TSD).The drive will disable the H-bridge output during faultcondition is met, and device will automaticallyrecovery when fault phenomena is removed.
FEATURES
● H-Bridge Motor Driver for:
- Single brushed DC Motor
- Single Winding of a Bipolar Stepping Motor
- Solenoid High Side Driver
● Wide Operating Voltage : 9V to 36V
● Low Switches Ros(on) (HS+LS) : 500mΩ(typ)
● Peak Current Output : 3.6Amps
● H-bridge Control Interface
● PWM Current Regulation
● Low-Power Sleep Mode
● Small Package and Footprint
- 8-Pin HSOP With Thermal PAD
● Protection Features
- VM Under voltage Lockout (UVLO)
- Across-Load Short Circuit Protection (SCP)
- Over Thermal Shutdown (TSD)
- Automatic Fault Recovery
APPLICATIONS
● Printers
● Home Appliances
● Industrial Equipment

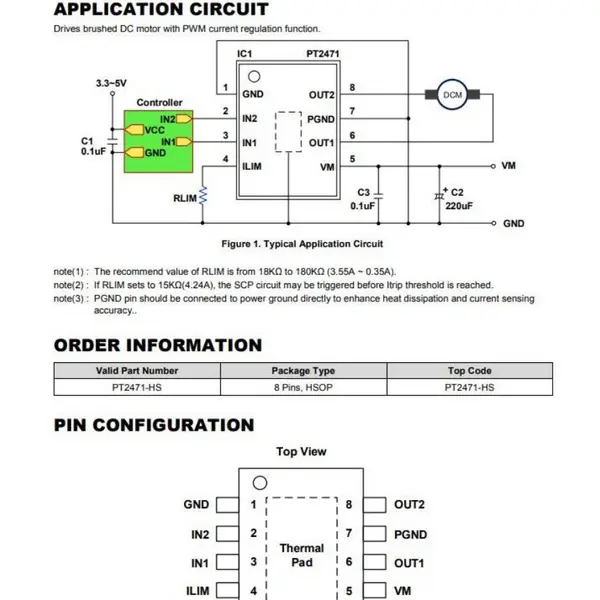

产品规格书（部分），如需PDF文档请QQ索要或电话联系
