| 产品特性：保护功能 | 品牌：PCT/普诚 | 型号：PT2513 |
| 类型：其他IC | 用途：电源IC | 封装：QFN20/HTSSOP16/HTSSOP20 |
| 系列：电机驱动器IC | 功率：参考规格书 | 批号：2024+ |
| 特色服务：提供技术支持 | 产品说明：原厂原装 | 包装：盘装 |
| 应用领域：照明电子 | 数量：30000 | QQ：1186670662 |
| 资质：代理 | 货源：原厂 | 可售卖地：全国 |
深圳市科瑞芯电子是PCT/普诚的供应商，商品原厂原装
供应无传感器正弦无刷直流电机驱动器，可为终端客户提供样品及技术支持！
深圳市内可送货上门，网上价格仅供参考，具体价格请咨询客服~
型号：PT2513
封装：QFN20/HTSSOP16/HTSSOP20
品牌：PCT/普诚
温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！

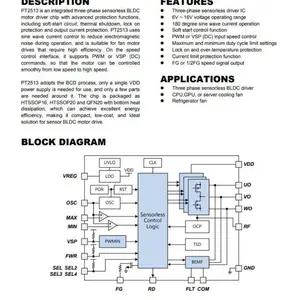

DESCRIPTION
PT2513 is an integrated three-phase sensorless BLDCmotor driver chip with advanced protection functions,including soft-start circuit, thermal shutdown, lock onprotection and output current protection. PT2513 usessine wave current control to reduce electromagneticnoise during operation, and is suitable for fan motordrives that require high efficiency. On the speedcontrol interface, it supports PWM or VSP (DC)commands, so that the motor can be controlledsmoothly from low speed to high speed.
PT2513 adopts the BCD process, only a single VDDpower supply is needed for use, and only a few partsare needed around it. The chip is packaged asHTSSOP16, HTSSOP20 and QFN20 with bottom heatdissipation, which can achieve excellent energyefficiency, making it compact, low-cost, and Idealsolution for sensor BLDC motor drive.
FEATURES
● Three-phase sensorless driver IC
● 6V ~ 16V voltage operating range
● 180 degree sine wave current operation
● Soft start control function
● PWM or VSP (DC) input speed control
● Maximum and minimum duty cycle limit settings
● Lock on and over-temperature protection
● Current limit protection function
● FG or 1/2FG speed signal output
APPLICATIONS
● Three phase sensorless BLDC driver
● CPU,GPU, or server cooling fan
● Refrigerator fan

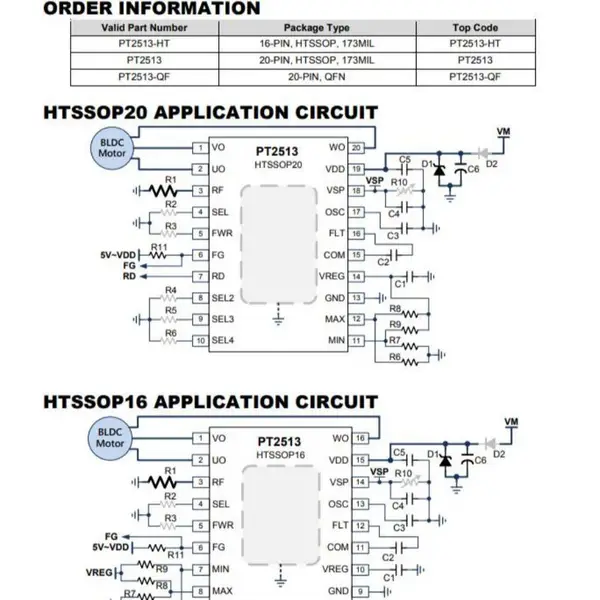

产品规格书（部分），如需PDF文档请QQ索要或电话联系
