| 产品特性：宽电源电压 | 品牌：PCT/普诚 | 型号：PT5616 |
| 类型：其他IC | 用途：电源IC | 封装：SOP28/SOP32 |
| 系列：电机驱动器IC | 功率：参考规格书 | 批号：2025+ |
| 特色服务：提供技术支持 | 产品说明：原厂原装 | 包装：盘装 |
| 应用领域：照明电子 | 数量：10000 | QQ：1186670662 |
| 资质：代理 | 货源：原厂 | 可售卖地：全国 |
深圳市科瑞芯电子是PCT/普诚的供应商，商品原厂原装
供应三相600V栅极驱动器IC，可为终端客户提供样品及技术支持！
深圳市内可送货上门，网上价格仅供参考，具体价格请咨询客服~
型号：PT5616
封装：SOP28/SOP32
品牌：PCT/普诚
温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！
DESCRIPTION
The devices are full bridge drivers to control powerdevices like MOS-transistors or IGBTs in 3-phasesystems with a maximum blocking voltage of +600 V.The six independent drivers are controlled at thelow-side using CMOS and LSTTL compatible signals,down to 3.3V logic. The device includes an under-voltage detection unit with hysteresis characteristicand over -current detection. The over -current level isadjusted by choosing the resistor value and thethreshold level at pin ITRIP. Both error conditions(under-voltage and over-current) lead to a definite shutdown of all six switches. An error signal is provided atthe FAULT open drain output pin. The blocking timeafter over -current can be adjusted with an RC-networkat pin RCIN. Therefore, the resistor RRCIN is optional.The typical output current can be given with 200mA forpull-up and 400mA for pull down. Because of systemsafety reasons a 0.29us dead time has been realized.The function of inputs EN and ITRIP can optionally beextended with over-temperature detection, using anexternal NTC resistor, diodes and resistor network.
FEATURES
● Drives up to six IGBT/MOSFE T power devices
● All high side channels fully operate up to +600V
● Gate drive supplies up to 18V per channel
● Under-voltage lockout for all channels
● Over-current protection
● Flexible over-temperature shutdown input
● Advanced input filter
● Built-in dead-time protection
● Shot-through (cross-conduction) protection
● Independent Enable/disable input and fault reporting
● Shutdown all switches during error conditions
● Adjustable fault clear timing
● Separate logic and power grounds
● 3.3 V/5V input logic compatible
● Designed for use with bootstrap power supplies
● Matched propagation delays for all channels
● Matched dead time
● -40C to 125 C operating range
● SOP28 Package available
● Lead-free
APPLICATIONS
● Three phase motor drives
● Industrial inverters
● General purpose three phase inverters

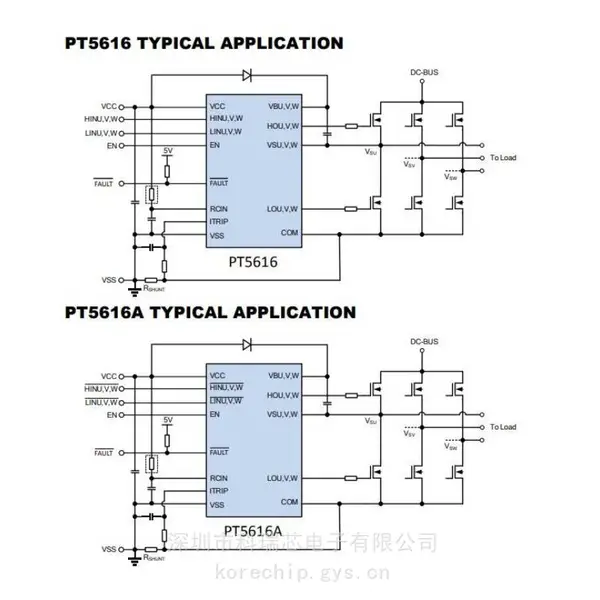

产品规格书（部分），如需PDF文档请QQ索要或电话联系
