| 产品特性：小尺寸封装 | 品牌：PCT/普诚 | 型号：PT5618 |
| 类型：其他IC | 用途：电源IC | 封装：TSSOP20/TSSOP24 |
| 系列：电机驱动器IC | 功率：参考规格书 | 批号：2024+ |
| 特色服务：提供技术支持 | 产品说明：原厂原装 | 包装：盘装 |
| 应用领域：照明电子 | 数量：30000 | QQ：1186670662 |
| 资质：代理 | 货源：原厂 | 可售卖地：全国 |
深圳市科瑞芯电子是PCT/普诚的供应商，商品原厂原装
供应200V三相栅极驱动器，可为终端客户提供样品及技术支持！
深圳市内可送货上门，网上价格仅供参考，具体价格请咨询客服~
型号：PT5618
封装：TSSOP20/TSSOP24
品牌：PCT/普诚
温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！
DESCRIPTION
The PT5618 is a high speed power MOSFET and IGBTdriver with three independent high and low sidereferenced output channels for 3-phase gate driver. Builtindeadtime protection and Shoot-through protection thatprevent half-bridge against damage.
The UVLO circuits prevent malfunction when VCC andVBS are lower than the specified threshold voltage. Novelhigh-voltage BCD process and common-mode noisecanceling technique provide stable operation of high-sidedrivers under high-dv/dt noise circumstances andexcellent negative transient voltage tolerance. PIN ENdesigned for standby mode can be used to enable chipinto low quiescent current state and get long battery lifetime.
FEATURES
● Integrated 200V half-bridge high side driver
● Driver up to 3-phase half-bridge gates
● Built-in deadtime control
● Shot-through protection
● Under voltage lockout for VCC and VBS
● 3.3V, 5V,15V input logic Compatible
● Built-in input filter
● Low standby current
● IO+/IO-: 320mA/620mA
● Builtin dead time: 0.55μs(typ.)
● Common-Mode dv/dt Noise Canceling Circuit
● Tolerant to negative transient voltage
● Low di/dt gate drive for better noised immunity
● -40°C- 125°C operating range
● Small footprint package: TSSOP20P/24P,173mil
APPLICATIONS
● 3-phase Motor Driver for E-BIKE, electric power tool
● Mini/micro motor control powered by battery
● Home appliance fed by 110V-AC grid
● General purpose inverter

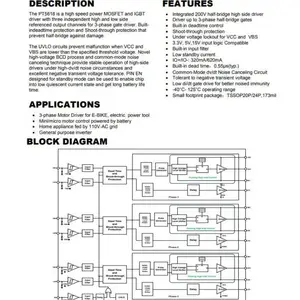

产品规格书（部分），如需PDF文档请QQ索要或电话联系
